Spring seesaws

Common questions about seesaws

What dimensions and seating layout do the models have?

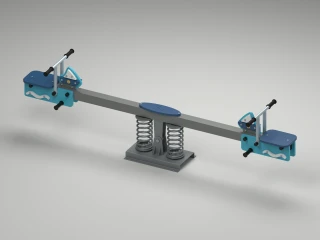

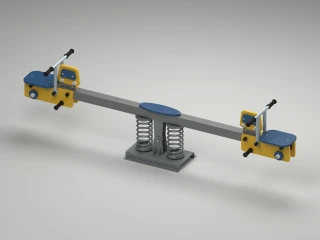

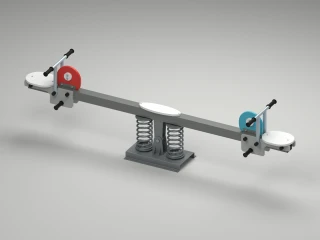

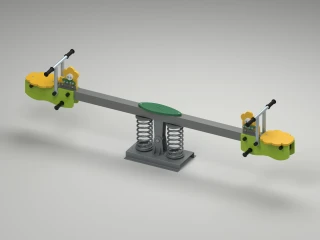

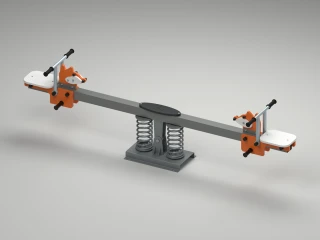

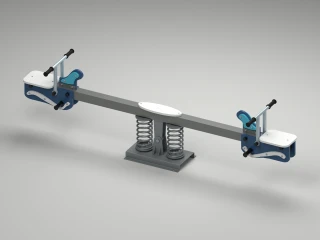

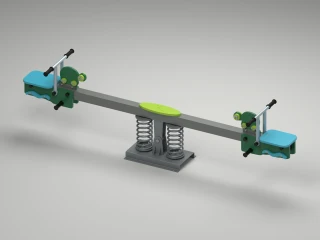

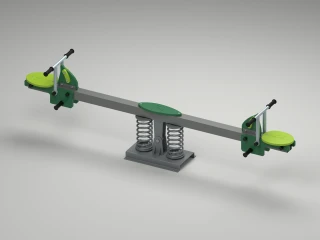

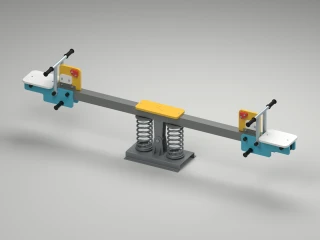

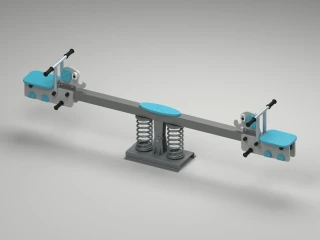

The supplied model measures 2600 x 490 x 703 mm overall (length x width x height), with two seating positions and a seat height of approximately 484 mm at neutral position. The model layout does not establish a user or load rating.

Which materials and colour options can I compare?

Each design identifies PE panels, a steel structure and registered PE colour codes. Screen swatches are approximate; physical samples govern. Rev 02 proposes an outdoor material and protective-finish brief for procurement review.

What do the Rev 02 PDFs and rotation videos show?

The three-page Rev 02 technical review records model facts, estimated model mass, dimensions and the base interface, followed by clearly marked design proposals. The shared four-page installation and care guide explains planning assumptions, installation review, proposed finish, maintenance and warranty terms. Both PDFs remain review drafts. The 12-second rotation video shows the exterior from different angles.

How are the model masses estimated?

Calculated from model-part volumes and assumed densities: PE 950, steel and reference springs 7,850, stainless hardware 8,000, and polymer/elastomer groups 1,000–1,400 kg/m³. Unspecified materials and reference spring geometry remain assumptions. Coatings, additional weld metal, site anchors, concrete and packaging are excluded. This is not measured net, shipping or lifting weight.

What is the status of the age, load and space proposals?

Design targets: ages 3–8, two seated users and 50 kg per seat / 100 kg combined. These are inputs for fit, motion and strength assessment, not an established age suitability or safe working load. Reserve 6.50 × 4.30 m (27.95 m²) for preliminary layout planning. This conditional allowance needs a final site layout and use-zone assessment. The 1.59 m conditional model-envelope bound is not measured free height of fall; the shared guide records the motion and surfacing assumptions.

How do I confirm project requirements and commercial terms?

Send HonPlay the selected model references, intended users, location, available space and ground conditions. Rev 02 proposes checks before opening, monthly functional inspections and annual detailed inspections, with extra checks after damage or severe weather. Its 24-month warranty wording is a draft commercial offer, not a current company warranty. Confirm final finish, maintenance and commercial terms in the accepted project documents.
