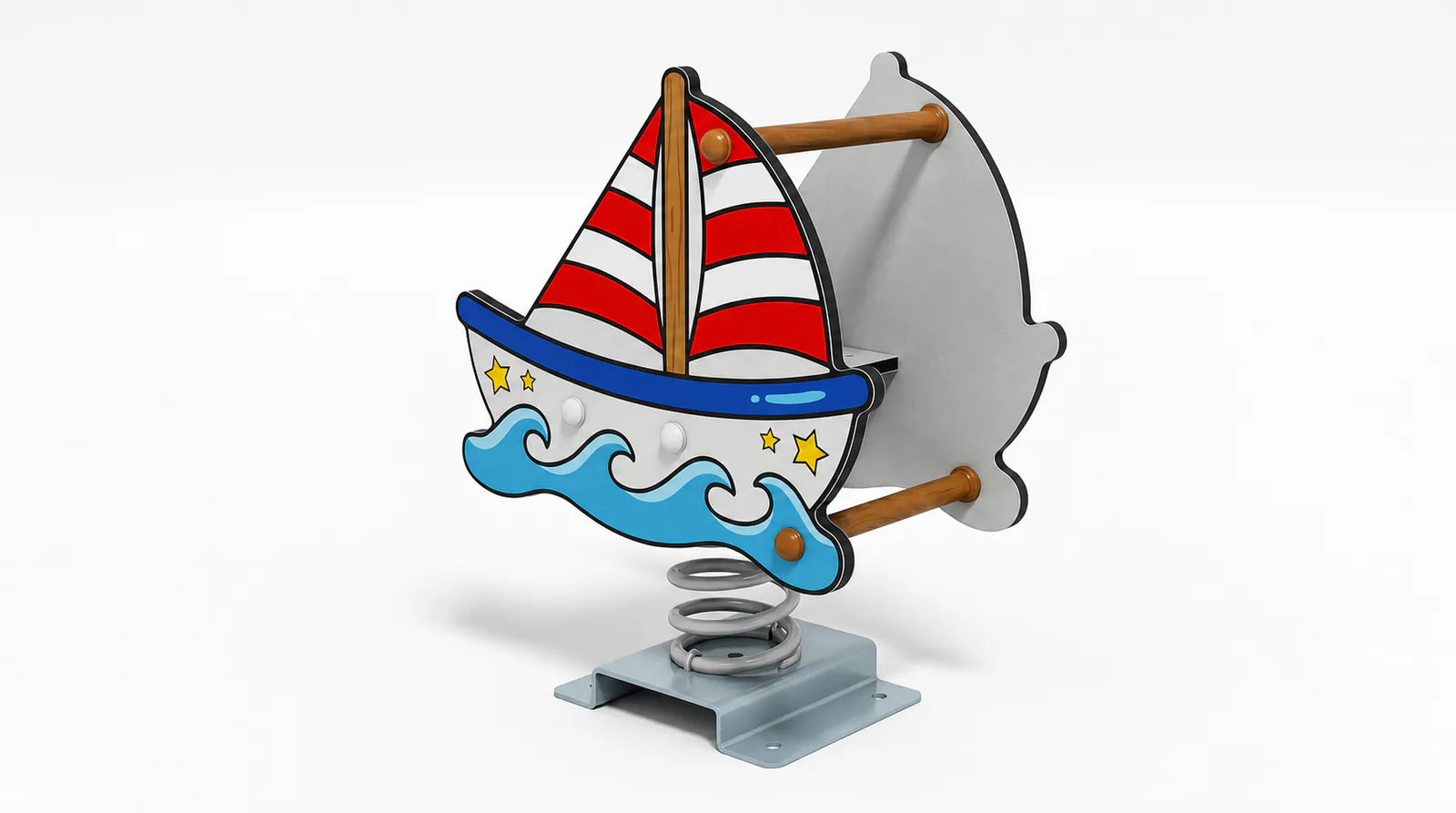

Sailboat Spring Rider - Outdoor Playground Rocking Equipment

The Sailboat Spring Rider is an essential piece of freestanding play equipment designed to spark nautical adventures for young children. The body is manufactured from high-density polyethylene (HDPE), a material chosen for its exceptional durability, non-toxic properties, and…

Age range
2 - 6 Years Old
Capacity
1
Enquire about this product ↗

Share your site size and requirements for a project-specific quote.

Customisation options ↗

Product information

Specifications

Product Snapshot

ProductSailboat Spring Rider - Outdoor Playground Rocking Equipment
Categoryrocking-horses
MaterialHigh-Density Polyethylene (HDPE) and Galvanized Steel
Dimensions (LWH)0.85m x 0.45m x 0.92m
Capacity1 simultaneous users
Age Group2 - 6 Years Old
CertificationEN1176, ASTM F1487, CE, TUV
Climate SuitabilityTemperate & Maritime Environments; Desert & Arid Climate Zones
Lead Time30–45 days FOB Ningbo/Shanghai
ManufacturerHonPlay, Wenzhou, China (est. 1997)
Commercial details

Key Details

Brand: HonPlay
SKU:912
MPN:912
Price:—
Availability: In Stock
Play activities

Activities

Balance
Balance: 8 of 10
Jump
Jump: 2 of 10
Pull
Pull: 4 of 10
Push
Push: 3 of 10
Rotate
Rotate: 1 of 10
Rules play
Rules play: 1 of 10
Sensory
Sensory: 5 of 10
Socialize
Socialize: 2 of 10
Wonder
Wonder: 9 of 10
Overview

Product Description

The Sailboat Spring Rider is an essential piece of freestanding play equipment designed to spark nautical adventures for young children. The body is manufactured from high-density polyethylene (HDPE), a material chosen for its exceptional durability, non-toxic properties, and resistance to fading. The structure is supported by a high-tension, powder-coated galvanized steel spring that ensures a smooth, controlled rocking motion. Safety is a core priority, with the design meeting rigorous CE and TUV EN1176 standards, featuring rounded edges and ergonomic handgrips. For maintenance, we recommend a monthly inspection of the base bolts and spring integrity, along with a simple cleaning using non-abrasive detergents. In high-traffic tropical coastal regions like Singapore, this unit is upgraded with C5-M marine-grade anti-corrosion coatings on all metal hardware. This specialized treatment provides superior high-humidity resistance, protecting the equipment from the corrosive effects of salt air and intense moisture. The UV-stabilized HDPE panels ensure the bright red and blue colors remain vivid even under constant equatorial sunlight, making it a long-lasting investment for seaside recreational spaces.

Rain-resistant galvanized steel with drainage-optimized joint design prevents moisture pooling and corrosion.

Site Suitability

Site Suitability

Expert recommendations for ideal installation environments based on product attributes and material specifications.

Coastal & Maritime Themed Parks

With its distinct sailboat silhouette and wave-contoured base, this unit is an essential addition to beachfront developments or nautical-themed playgrounds. The use of galvanized steel for the base plate and high-density panels ensures the structure withstands the corrosive effects of salt-heavy air.

Early Learning & Toddler Zones

The low fall height and rounded safety edges visible on the CNC-cut panels make this rocker ideal for supervised early childhood centers. The compact footprint allows for easy integration into smaller play areas without compromising on the high-contrast visual stimulation provided by the red, white, and blue graphics.

Urban Pocket Parks

Designed for high-traffic public spaces where square footage is at a premium, the single-post spring design provides maximum play value within a minimal safety surfacing radius. The robust hardware and durable timber handles are engineered to endure the constant use typical of dense metropolitan environments.

Engineering Highlights

Engineering Highlights

Key engineering features that ensure safety, durability, and compliance with international standards.

CNC-machined multi-layer HDPE panels fea

CNC-machined multi-layer HDPE panels featuring vibrant, UV-stable pigments that resist delamination and fading in direct sunlight.

Heavy-duty 20mm diameter steel coil spri

Heavy-duty 20mm diameter steel coil spring with a specialized anti-pinch safety gap and weather-resistant powder coating.

Integrated solid timber handrails

Integrated solid timber handrails and footrests providing a natural tactile grip and superior structural rigidity compared to plastic alternatives.

Play Value

Play Value

This playground equipment supports child development across physical, social, and cognitive dimensions—aligned with modern educational and landscape design principles.

Enhances vestibular development

Enhances vestibular development and core stability through the rhythmic, multi-directional rocking motion of the spring-mounted chassis.

Stimulates imaginative role-play

Stimulates imaginative role-play and social storytelling centered around the nautical sailboat theme and wave-patterned side panels.

Refines fine motor skills

Refines fine motor skills and hand-eye coordination as children navigate the dual-level grip bars and integrated foot supports.

Safety and assembly

Safety & Installation

Regulatory Compliance

This sailboat spring rider is engineered to meet rigorous EN1176 and ASTM F1487 safety standards for commercial play environments. The heavy-duty coil spring is designed with specific spacing to prevent finger entrapment, while the UV-stabilized HDPE panels ensure no splintering or sharp edges over time. All structural steel components are hot-dip galvanized to provide superior anti-corrosion protection in outdoor settings.

Safety Zone & Surfacing

With a low critical fall height of approximately 0.6 meters, this unit requires a minimum safety buffer zone of 1.5 meters in all directions. We recommend high-quality impact-attenuating surfacing such as EPDM pour-in-place rubber or synthetic turf to ensure maximum protection for toddlers.

Installation & Engineering Support

This compact rocker features a small footprint suitable for both large parks and restricted urban play areas. The unit arrives partially assembled with a surface-mount galvanized steel base plate that requires four anchor bolts into a level concrete foundation. No heavy lifting equipment or cranes are necessary for the installation of this single-user station.

  • • Heavy-duty 20mm diameter E-coated steel coil spring
  • • Dual-color UV-stabilized HDPE side panels with CNC-routed graphics
  • • Anti-slip textured wooden-style hand grips and footrests
  • • Corrosion-resistant hot-dip galvanized steel mounting base
  • • Stainless steel tamper-proof security fasteners
Product comparison

How This Compares

Performance benchmarks against 112 products in the rocking-horses category.

FeatureThis ProductCategory AvgΔ
Capacity1 children2 children-50%
High-Engagement Activities3 of 92.7 of 9Average
Primary MaterialHigh-Density Polyethylene (HDPE) and Galvanized SteelVariesStandard
CertificationsEN1176, ASTM F1487, CE, TUVEN11764 standards
Questions and answers

Frequently Asked Questions

What safety zone is required for the Sailboat Spring Rider - Outdoor Playground Rocking Equipment?
Based on equipment dimensions of 0.85m x 0.45m x 0.92m, a minimum safety zone of 4.3m × 4.0m is required per EN1176 standards. The critical fall height is 0.92m. Recommended surfacing includes EPDM rubber wet-pour (minimum 40mm thickness) or HIC-tested artificial turf with shock pads to meet impact attenuation requirements.
What age group is the Sailboat Spring Rider - Outdoor Playground Rocking Equipment designed for, and how many children can use it?
The Sailboat Spring Rider - Outdoor Playground Rocking Equipment is designed for children aged 2 - 6 Years Old, with a simultaneous user capacity of 1. The structure dimensions and activity challenges are calibrated to this age range, ensuring developmental appropriateness while maintaining safety margins per EN1176 age-group classification.
What material is the Sailboat Spring Rider - Outdoor Playground Rocking Equipment made of, and how durable is it?
Primary construction material is High-Density Polyethylene (HDPE) and Galvanized Steel, chosen for commercial-grade durability in high-traffic public installations. At 0.85m x 0.45m x 0.92m, all structural members are proportioned for this specific load profile. The material is tested against accelerated weathering (UV, moisture, temperature cycling) and maintains structural integrity over extended service life. Tested for temperate & maritime environments conditions including installations in London, Amsterdam, Berlin.
What safety certifications does the Sailboat Spring Rider - Outdoor Playground Rocking Equipment hold?
Certified to EN1176, ASTM F1487, CE, TUV standards. Critical fall height of 0.92m validated against free-fall requirements. Testing covers all critical safety parameters including structural integrity under dynamic loading, protrusion and entrapment prevention, and fall-zone requirements. Load-tested for 1 simultaneous users. High-Density Polyethylene (HDPE) and Galvanized Steel construction verified for commercial-grade load capacity. Valid for commercial public installations including parks, schools, and residential developments.
Is the Sailboat Spring Rider - Outdoor Playground Rocking Equipment suitable for installation in London or Amsterdam?
Yes. The Sailboat Spring Rider - Outdoor Playground Rocking Equipment is engineered for temperate & maritime environments including London, Amsterdam, and similar regions. Rain-resistant galvanized steel with drainage-optimized joint design prevents moisture pooling and corrosion. The High-Density Polyethylene (HDPE) and Galvanized Steel construction is specifically rated for these environmental conditions. At 0.85m x 0.45m x 0.92m, site preparation should include a level foundation with proper drainage for London's climate. Contact our engineering team for a site-specific feasibility assessment.
Additional product information

Compliance: EN1176
