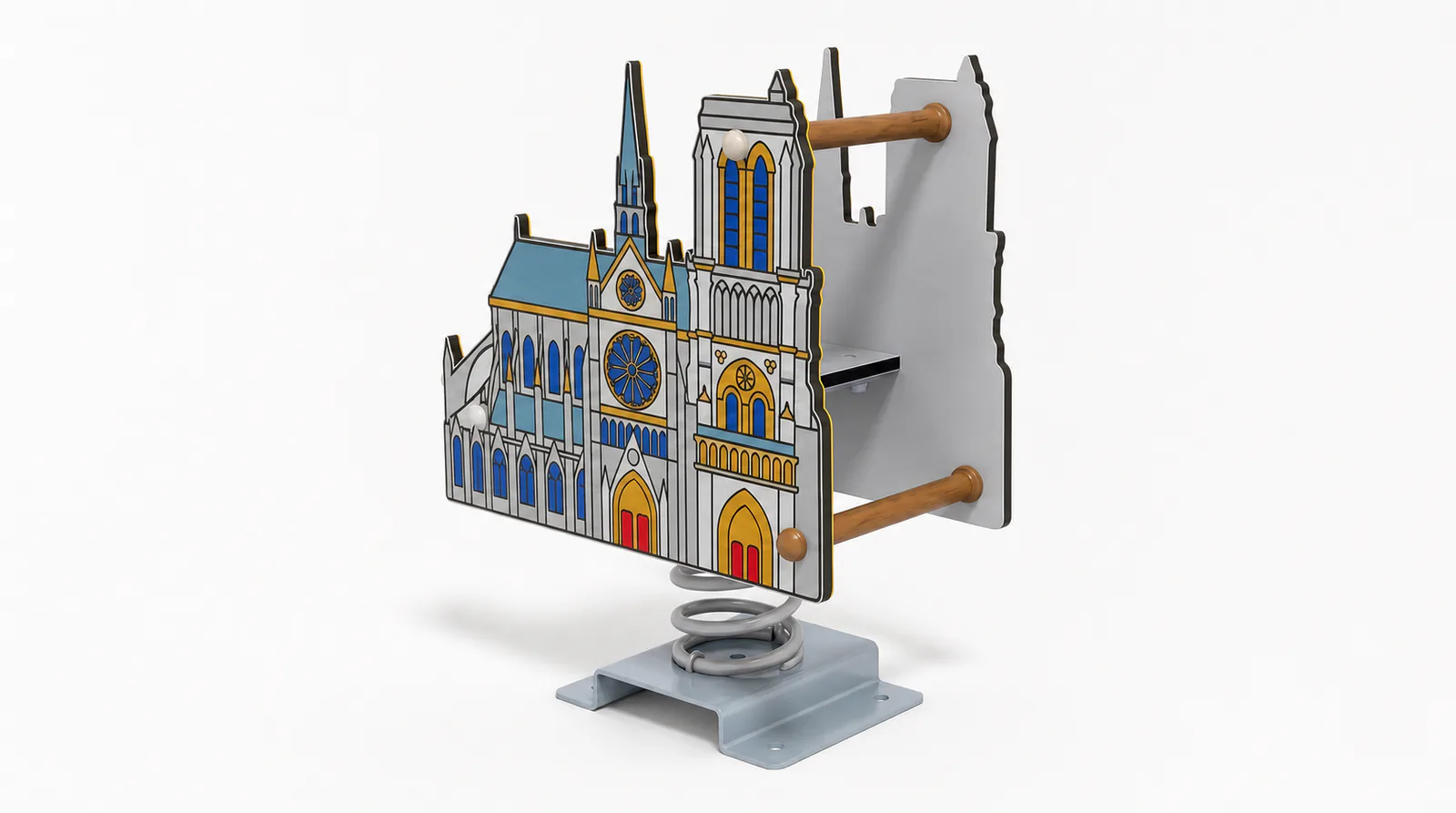

Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment

This themed spring rider brings architectural wonder to the playground with its high-definition Notre Dame Cathedral graphics. Crafted from premium 19mm HDPE panels, the structure is exceptionally resistant to fading and impact. The heavy-duty galvanized steel spring is…

Model
HP-SR-ND01
Age range
2 - 6 Years Old
Capacity
1
Enquire about this product ↗

Share your site size and requirements for a project-specific quote.

Customisation options ↗

Product information

Specifications

Product Snapshot

ProductNotre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment
Categoryrocking-horses
MaterialUV-Stabilized HDPE, Galvanized Steel, and Hardwood
Dimensions (LWH)0.85m x 0.45m x 1.05m
Capacity1 simultaneous users
Age Group2 - 6 Years Old
CertificationEN1176, ASTM F1487, CE, TUV
Climate SuitabilityTemperate & Maritime Environments; High-Altitude & UV-Intense Regions
Lead Time30–45 days FOB Ningbo/Shanghai
ManufacturerHonPlay, Wenzhou, China (est. 1997)
Commercial details

Key Details

Brand: HonPlay
SKU:837
MPN:837
Price:—
Availability: In Stock
Play activities

Activities

Balance
Balance: 7 of 10
Jump
Jump: 2 of 10
Pull
Pull: 3 of 10
Push
Push: 2 of 10
Rotate
Rotate: 1 of 10
Rules play
Rules play: 1 of 10
Sensory
Sensory: 5 of 10
Socialize
Socialize: 2 of 10
Wonder
Wonder: 9 of 10
Overview

Product Description

This themed spring rider brings architectural wonder to the playground with its high-definition Notre Dame Cathedral graphics. Crafted from premium 19mm HDPE panels, the structure is exceptionally resistant to fading and impact. The heavy-duty galvanized steel spring is powder-coated for longevity, while the ergonomic wooden handles provide a natural grip. Fully compliant with CE and TUV EN1176 safety standards, this equipment prioritizes child safety through rounded edges and an anti-pinch spring design. Maintenance involves monthly inspections of the spring tension and base bolts, alongside simple soap-and-water cleaning of the HDPE surfaces to maintain the vibrant graphics. For the Warsaw market, the materials are specifically selected for high impact resistance in freezing temperatures, ensuring the plastic doesn't become brittle during harsh winters. Additionally, the base plate features anti-slip safety for snowy conditions, providing stable footing even in wet or icy weather, making it a reliable choice for year-round outdoor play in Northern European climates.

FSC-certified Robinia and Larch develop a protective silver-gray patina in temperate rain environments.

Engineering Highlights

Engineering Highlights

Key engineering features that ensure safety, durability, and compliance with international standards.

Precision-profiled HPL side panels featu

Precision-profiled HPL side panels featuring multi-layered UV-resistant graphics that depict intricate Gothic architectural details.

Industrial-grade 20mm steel coil spring

Industrial-grade 20mm steel coil spring engineered for high-frequency oscillation with integrated anti-pinch safety spacing.

Structural hardwood cross-members provid

Structural hardwood cross-members provide ergonomic grip points and foot support, treated for long-term weather resistance.

Play Value

Play Value

This playground equipment supports child development across physical, social, and cognitive dimensions—aligned with modern educational and landscape design principles.

Stimulates narrative-driven play by tran

Stimulates narrative-driven play by transforming a traditional spring rider into a recognizable historical landmark.

Refines vestibular processing

Refines vestibular processing and balance through the multi-directional movement of the heavy-duty spring base.

Promotes early spatial awareness as todd

Promotes early spatial awareness as toddlers navigate the enclosed seating area between the two high-walled cathedral panels.

Site Suitability

Site Suitability

Expert recommendations for ideal installation environments based on product attributes and material specifications.

Urban Cultural Centers

The sophisticated architectural theme and compact footprint make this unit ideal for city plazas or museum grounds where play equipment must complement a refined aesthetic.

Public Heritage Parks

Constructed with a hot-dip galvanized steel base and weather-hardy HPL, this rider is built to withstand the heavy use and environmental exposure typical of high-profile public gardens.

Themed Educational Playgrounds

The detailed visual storytelling on the side panels serves as a perfect centerpiece for playgrounds focusing on world history, geography, or European landmarks.

Safety and assembly

Safety & Installation

Regulatory Compliance

This themed spring rider is engineered to meet EN1176 and ASTM F1487 standards, featuring a heavy-duty spring with integrated anti-pinch protection. The CNC-routed HDPE panels are UV-stabilized and non-toxic, ensuring long-term structural integrity and user safety in high-traffic commercial environments. All metal components, including the base plate, are hot-dip galvanized to prevent corrosion and maintain compliance with international safety regulations.

Safety Zone & Surfacing

A minimum safety clearance zone of 1.5 meters is required around the perimeter of the unit to accommodate the rocking motion. Given the low critical fall height of approximately 0.6 meters, impact-attenuating surfacing such as EPDM rubber or bonded mulch is highly recommended for optimal safety.

Installation & Engineering Support

The compact 0.85m footprint allows for easy integration into existing play areas via a surface-mount installation. The unit features a pre-drilled galvanized steel base plate designed for secure anchoring into concrete footings or solid sub-bases. This model ships partially assembled, requiring only the attachment of the hardwood handles and footrests using the provided stainless steel hardware.

  • • Heavy-duty powder-coated steel spring with anti-pinch coil spacing
  • • UV-stabilized, high-density polyethylene (HDPE) side panels with architectural graphics
  • • Natural hardwood grip handles and footrests for ergonomic support
  • • Hot-dip galvanized steel base plate for superior corrosion resistance
  • • Tamper-resistant stainless steel fasteners for vandal-proof security
Product comparison

How This Compares

Performance benchmarks against 112 products in the rocking-horses category.

FeatureThis ProductCategory AvgΔ
Capacity1 children2 children-50%
High-Engagement Activities3 of 92.7 of 9Average
Primary MaterialUV-Stabilized HDPE, Galvanized Steel, and HardwoodVariesStandard
CertificationsEN1176, ASTM F1487, CE, TUVEN11764 standards
Questions and answers

Frequently Asked Questions

What safety zone is required for the Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment?
Based on equipment dimensions of 0.85m x 0.45m x 1.05m, a minimum safety zone of 4.3m × 4.0m is required per EN1176 standards. The critical fall height is 1.05m. Recommended surfacing includes EPDM rubber wet-pour (minimum 40mm thickness) or HIC-tested artificial turf with shock pads to meet impact attenuation requirements.
What age group is the Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment designed for, and how many children can use it?
The Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment is designed for children aged 2 - 6 Years Old, with a simultaneous user capacity of 1. The structure dimensions and activity challenges are calibrated to this age range, ensuring developmental appropriateness while maintaining safety margins per EN1176 age-group classification.
What material is the Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment made of, and how durable is it?
Primary construction material is UV-Stabilized HDPE, Galvanized Steel, and Hardwood, chosen for commercial-grade durability in high-traffic public installations. At 0.85m x 0.45m x 1.05m, all structural members are proportioned for this specific load profile. The material is tested against accelerated weathering (UV, moisture, temperature cycling) and maintains structural integrity over extended service life. Tested for temperate & maritime environments conditions including installations in London, Amsterdam, Berlin.
What safety certifications does the Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment hold?
Certified to EN1176, ASTM F1487, CE, TUV standards. Critical fall height of 1.05m validated against free-fall requirements. Testing covers all critical safety parameters including structural integrity under dynamic loading, protrusion and entrapment prevention, and fall-zone requirements. Load-tested for 1 simultaneous users. UV-Stabilized HDPE, Galvanized Steel, and Hardwood construction verified for commercial-grade load capacity. Valid for commercial public installations including parks, schools, and residential developments.
Is the Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment suitable for installation in Seoul or Tokyo?
Yes. The Notre Dame Cathedral Spring Rider - Iconic Themed Playground Equipment is engineered for temperate & maritime environments including Seoul, Tokyo, and similar regions. FSC-certified Robinia and Larch develop a protective silver-gray patina in temperate rain environments. The UV-Stabilized HDPE, Galvanized Steel, and Hardwood construction is specifically rated for these environmental conditions. At 0.85m x 0.45m x 1.05m, site preparation should include a level foundation with proper drainage for Seoul's climate. Contact our engineering team for a site-specific feasibility assessment.
Additional product information

Compliance: EN1176
