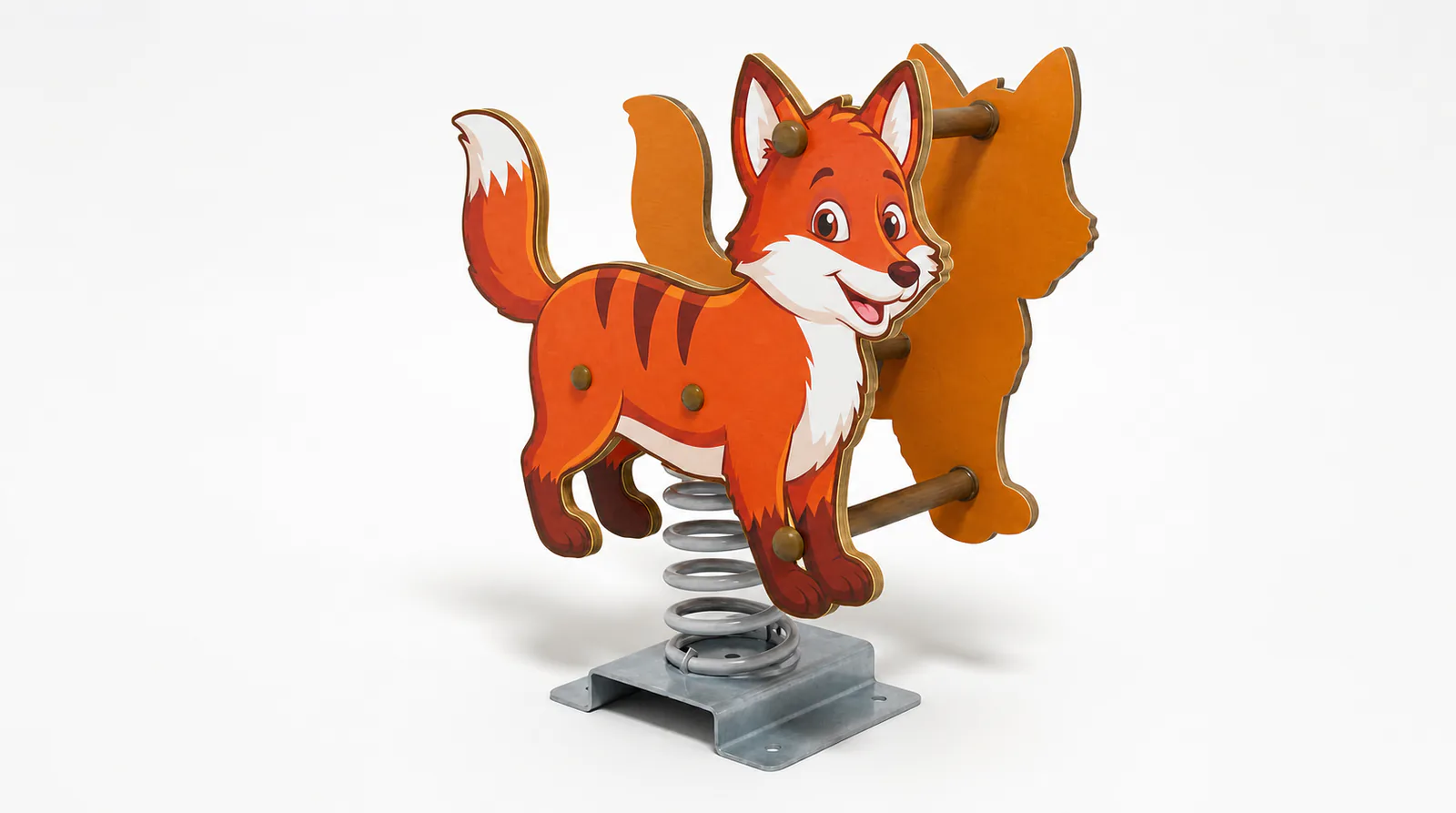

Fox Spring Rider - Outdoor Playground Rocking Equipment

Engineered for high-traffic commercial environments, this Fox Spring Rider is built using premium high-density polyethylene (HDPE) panels that are both UV-stabilized and colorfast. The core mechanism consists of a heavy-duty galvanized steel spring with a professional…

Model
HP-SR012
Age range
2 - 6 Years Old
Capacity
1
Enquire about this product ↗

Share your site size and requirements for a project-specific quote.

Customisation options ↗

Product information

Specifications

Product Snapshot

ProductFox Spring Rider - Outdoor Playground Rocking Equipment
Categoryrocking-horses
MaterialUV-Stabilized HDPE & Hot-Dip Galvanized Steel
Dimensions (LWH)0.85m x 0.35m x 0.95m
Capacity1 simultaneous users
Age Group2 - 6 Years Old
CertificationEN1176, ASTM F1487, CE, TUV
Climate SuitabilityTemperate & Maritime Environments; Mediterranean & Warm Temperate; Tropical & Coastal Installations
Lead Time30–45 days FOB Ningbo/Shanghai
ManufacturerHonPlay, Wenzhou, China (est. 1997)
Commercial details

Key Details

Brand: HonPlay
SKU:866
MPN:866
Price:—
Availability: In Stock
Play activities

Activities

Balance
Balance: 8 of 10
Jump
Jump: 2 of 10
Pull
Pull: 4 of 10
Push
Push: 2 of 10
Rotate
Rotate: 1 of 10
Rules play
Rules play: 1 of 10
Sensory
Sensory: 6 of 10
Socialize
Socialize: 3 of 10
Wonder
Wonder: 9 of 10
Overview

Product Description

Engineered for high-traffic commercial environments, this Fox Spring Rider is built using premium high-density polyethylene (HDPE) panels that are both UV-stabilized and colorfast. The core mechanism consists of a heavy-duty galvanized steel spring with a professional powder-coated finish to resist corrosion and mechanical fatigue. Safety is paramount, and this unit fully complies with EN1176 and TUV standards, featuring rounded edges and non-toxic materials. Maintenance is straightforward, requiring monthly inspections of the spring tension and bolt security, alongside routine cleaning with mild detergents. For projects in Warsaw, Poland, this equipment is specifically chosen for its superior impact resistance in freezing temperatures, ensuring the HDPE remains ductile and crack-free during harsh winters. Furthermore, the textured footrests are designed to provide critical anti-slip safety for snowy conditions, making it an ideal year-round fixture for Polish municipal playgrounds and residential courtyards where safety and durability are non-negotiable.

Rain-resistant galvanized steel with drainage-optimized joint design prevents moisture pooling and corrosion.

Engineering Highlights

Engineering Highlights

Technical highlights include welding quality, climate resistance, and vandal-proof design.

CNC-profiled high-density panels featuri

CNC-profiled high-density panels featuring multi-layered color infusion for permanent, scratch-resistant fox graphics.

Heavy-duty 20mm tempered steel coil spri

Heavy-duty 20mm tempered steel coil spring engineered with anti-pinch safety spacing and a weather-resistant powder coating.

Hot-dip galvanized steel base plate with

Hot-dip galvanized steel base plate with a four-point anchoring system for maximum stability on poured-in-place or tile surfacing.

Play Value

Play Value

From gross motor skills to imaginative role-play, this equipment addresses multiple developmental domains while meeting modern landscape and educational standards.

Vestibular system stimulation through rh

Vestibular system stimulation through rhythmic rocking motions that enhance a child's sense of balance and spatial orientation.

Imaginative role-play encouraged by the

Imaginative role-play encouraged by the friendly, anthropomorphic fox character, fostering social-emotional development.

Core muscle strengthening

Core muscle strengthening and grip coordination developed through the use of integrated footrests and ergonomic handle bars.

Site Suitability

Site Suitability

Site-specific advice for installation—matched to product materials, climate suitability, and traffic expectations.

Early Childhood Education Centers

The low-profile design and approachable animal theme shown in this unit make it an ideal addition to preschool and daycare environments. The rounded safety caps on all visible hardware and the compact footprint ensure a safe, non-intimidating play experience for toddlers working on basic motor skills.

Nature-Themed Public Parks

With its vibrant orange and white woodland aesthetic, this spring rider integrates seamlessly into park settings focused on natural themes. The robust galvanized base and weather-hardy composite panels are specifically chosen to withstand high-traffic public use and varying environmental conditions without fading or structural degradation.

Urban Pocket Playgrounds

The vertical spring configuration and minimal safety surfacing requirements allow this fox rocker to fit into tight urban spaces or rooftop play zones. The industrial-grade mounting plate visible at the base provides a secure, permanent installation point for concrete or asphalt-based city environments.

Safety and assembly

Safety & Installation

Regulatory Compliance

This Fox Spring Rider is engineered to meet rigorous EN1176 and ASTM F1487 safety standards for commercial play environments. The structure features a heavy-duty hot-dip galvanized steel base and spring assembly, ensuring superior anti-corrosion performance in all weather conditions. All edges on the HDPE panels are CNC-routed to a smooth radius to prevent snagging or impact injuries.

Safety Zone & Surfacing

Given the low critical fall height of approximately 0.6 meters, a safety buffer zone of 1.5 meters is required around the perimeter. We recommend high-density EPDM rubber surfacing or synthetic turf to provide adequate impact attenuation for active rocking motion.

Installation & Engineering Support

The compact 0.85m footprint allows for easy integration into small play areas or as part of a larger themed circuit. This unit arrives partially assembled and is designed for surface mounting onto concrete footings using the pre-drilled galvanized base plate. No heavy lifting equipment is required for installation, making it a cost-effective addition for schools and parks.

  • • 20mm diameter heavy-duty steel coil spring
  • • UV-stabilized HDPE side panels with high-resolution graphics
  • • Hot-dip galvanized steel anti-corrosion base plate
  • • Tamper-proof stainless steel hardware with protective caps
  • • Ergonomic anti-slip footrests and hand grips
Product comparison

How This Compares

Performance benchmarks against 112 products in the rocking-horses category.

FeatureThis ProductCategory AvgΔ
Capacity1 children2 children-50%
High-Engagement Activities3 of 92.7 of 9Average
Primary MaterialUV-Stabilized HDPE & Hot-Dip Galvanized SteelVariesStandard
CertificationsEN1176, ASTM F1487, CE, TUVEN11764 standards
Questions and answers

Frequently Asked Questions

What safety zone is required for the Fox Spring Rider - Outdoor Playground Rocking Equipment?
Based on equipment dimensions of 0.85m x 0.35m x 0.95m, a minimum safety zone of 4.3m × 3.9m is required per EN1176 standards. The critical fall height is 0.95m. Recommended surfacing includes EPDM rubber wet-pour (minimum 40mm thickness) or HIC-tested artificial turf with shock pads to meet impact attenuation requirements.
What age group is the Fox Spring Rider - Outdoor Playground Rocking Equipment designed for, and how many children can use it?
This equipment targets children aged 2 - 6 Years Old with capacity for 1 simultaneous users. Activity zones are proportioned to this age group's reach, stride, and grip strength, ensuring both challenge and safety within EN1176 parameters.
What material is the Fox Spring Rider - Outdoor Playground Rocking Equipment made of, and how durable is it?
The Fox Spring Rider - Outdoor Playground Rocking Equipment is constructed with UV-Stabilized HDPE & Hot-Dip Galvanized Steel. At 0.85m x 0.35m x 0.95m, all structural members are proportioned for this specific load profile. This material provides long-term resistance to UV degradation, corrosion, and mechanical wear in commercial outdoor environments. Tested for temperate & maritime environments conditions including installations in London, Amsterdam, Berlin. Surface treatments include anti-vandal coatings and colorfastness protection rated for 10+ years of outdoor exposure.
What safety certifications does the Fox Spring Rider - Outdoor Playground Rocking Equipment hold?
This equipment holds EN1176, ASTM F1487, CE, TUV certification, verified through third-party testing covering structural load capacity, entrapment hazards, and fall-height limits. Critical fall height of 0.95m validated against free-fall requirements. Load-tested for 1 simultaneous users. UV-Stabilized HDPE & Hot-Dip Galvanized Steel construction verified for commercial-grade load capacity. Test reports are available for government and institutional procurement processes.
Is the Fox Spring Rider - Outdoor Playground Rocking Equipment suitable for installation in Berlin or Paris?
Yes. The Fox Spring Rider - Outdoor Playground Rocking Equipment is engineered for temperate & maritime environments including Berlin, Paris, and similar regions. Rain-resistant galvanized steel with drainage-optimized joint design prevents moisture pooling and corrosion. The UV-Stabilized HDPE & Hot-Dip Galvanized Steel construction is specifically rated for these environmental conditions. At 0.85m x 0.35m x 0.95m, site preparation should include a level foundation with proper drainage for Berlin's climate. Contact our engineering team for a site-specific feasibility assessment.
