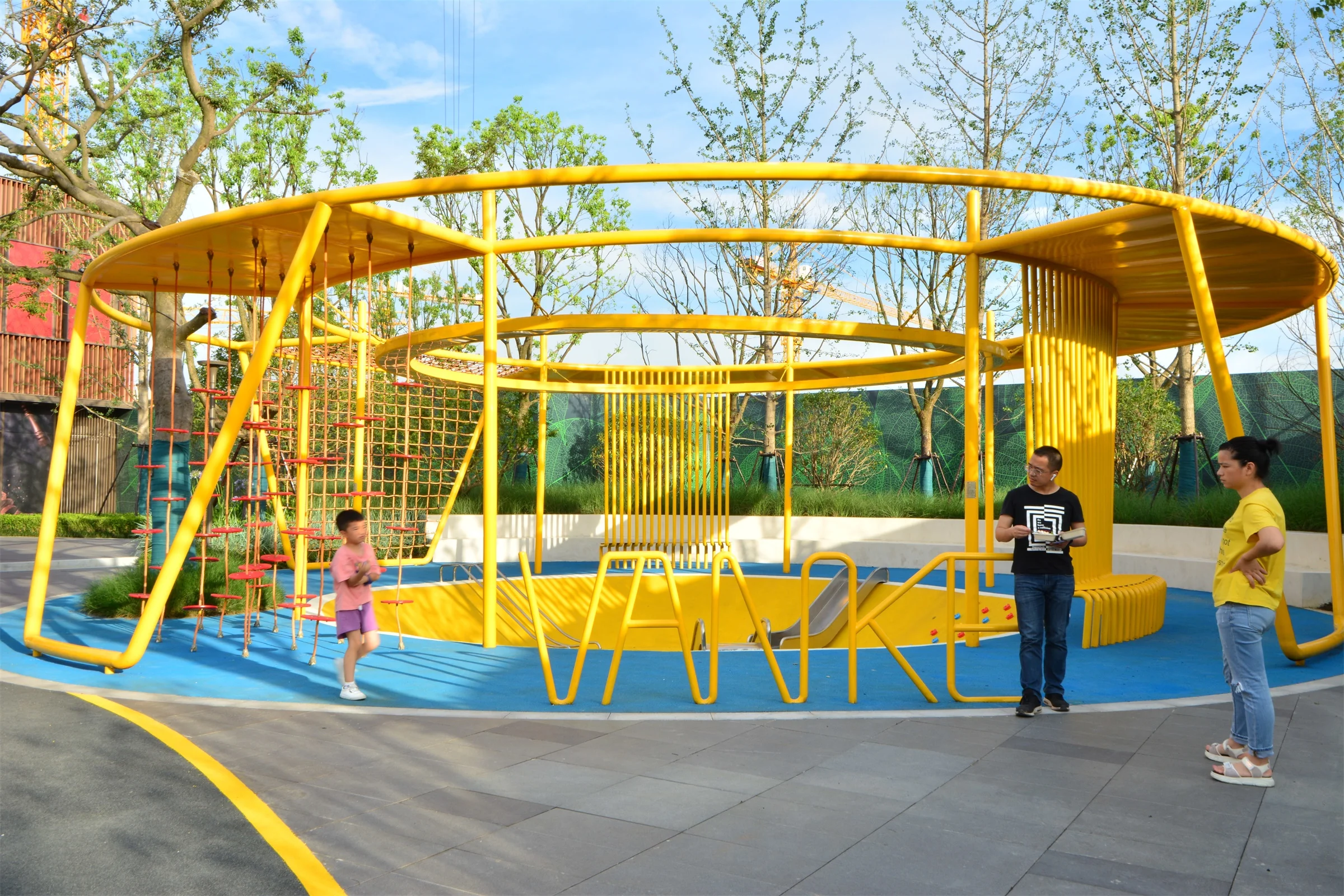

Circular Yellow Outdoor Climbing Frame - Multi-functional Playground Equipment for Residential Parks

Why This Product

The Circular Yellow Outdoor Climbing Frame represents a strategic investment for high-traffic residential developments and municipal parks where architectural aesthetics must align with rigorous safety standards. Measuring 12m x 12m with a 4.5m peak, this unit offers a substantial 144-square-meter footprint that accommodates 15-20 children simultaneously, maximizing throughput during peak hours. The structural integrity is anchored by a precision-engineered galvanized steel ring beam and a 360-degree cantilevered canopy, which provides essential UV protection and structural symmetry. Unlike lower-tier modular plastic units, the use of heavy-gauge steel and a stainless steel slide ensures a 15-year lifecycle with minimal structural fatigue. The high-tension, multi-strand polyester rope matrix utilizes reinforced junction connectors, significantly reducing the risk of fraying or mechanical failure common in standard nylon alternatives. From an ROI perspective, the EN1176, CE, and ASTM certifications mitigate liability risks, while the integrated typographic structural supports serve as a dual-purpose safety barrier and branding element. This eliminates the need for additional perimeter fencing, reducing initial capital expenditure. The per-child-per-year value is exceptionally high when factoring in the durability of the galvanized finish against corrosive environmental factors, making it a superior choice for long-term asset management.

Installation Guide

Given the 12m x 12m dimensions, a minimum safety zone of 15.5m x 15.5m is required to satisfy EN1176-1 requirements, providing a 1.75m buffer beyond the furthest reach of the cantilevered canopy. Due to the 4.5m height and the weight of the galvanized steel ring beam, a 10-ton mobile crane is necessary for the overhead assembly phase. The foundation must consist of deep-pour reinforced concrete footings (minimum 3000 PSI) to support the concentrated loads of the typographic structural supports. Estimated installation time for a certified four-person crew is approximately 5-7 working days, excluding site preparation. Special attention must be paid to the tensioning of the multi-strand polyester rope matrix; calibrated tensioning tools are required to meet the specific deflection standards outlined in EN1176-11 for cable-bound play structures. The EPDM or poured-in-place rubber surfacing must be rated for a Critical Fall Height (CFH) of at least 2.5m beneath the primary climbing zones.

10-Year Cost of Ownership

The 10-year Total Cost of Ownership (TCO) for this galvanized steel and stainless steel system is highly favorable compared to timber or composite alternatives. Initial procurement and shipping (FOB) represent approximately 65% of the 10-year budget. Installation labor and specialized equipment rental account for 15%. Because galvanized steel and stainless steel are resistant to UV degradation and rot, annual maintenance is primarily limited to rope tensioning inspections and surface cleaning, estimated at $800-$1,200 annually. Over a 10-year horizon, the probability of structural replacement is less than 5%, whereas plastic components often require mid-cycle replacement due to color fading or brittleness. Factoring in a 15-year lifespan, the amortized cost framework suggests a per-year expenditure of approximately 8% of the initial capital outlay, providing a stable and predictable budget for municipal or resort asset managers.
