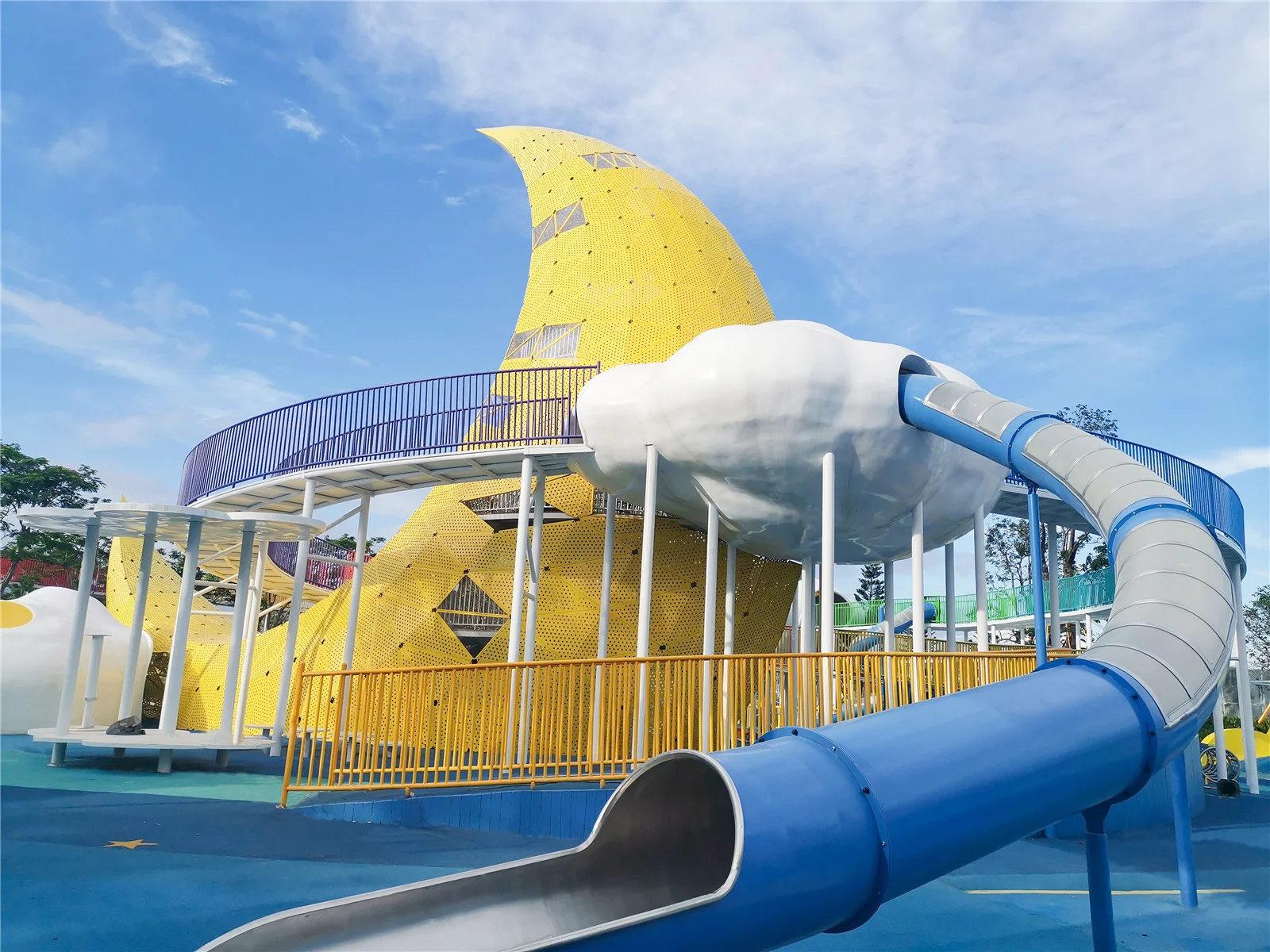

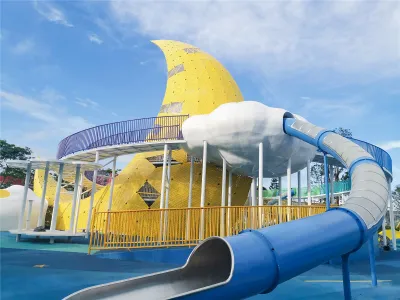

Moon & Cloud Themed Outdoor Playground - Custom Large-Scale Play Structure for Dubai Urban Parks

Why This Product

The Moon & Cloud Themed Outdoor Playground represents a strategic investment for Dubai urban parks, where high-performance materials must withstand extreme UV exposure and saline environments. Unlike standard modular units, this structure utilizes CNC-perforated galvanized steel cladding for the crescent moon, which achieves a 40% transparency ratio. This engineering choice is critical for municipal buyers as it ensures passive cooling through natural ventilation and maintains clear sightlines for parental supervision, reducing liability risks. With a capacity of 15-25 children and a 5-12 age group focus, the structure maximizes throughput in high-traffic public spaces. The integration of GRP (Glass Reinforced Plastic) for the cloud housing provides superior structural anchoring for the HDPE spiral slide compared to standard plastic brackets, significantly extending the lifecycle of high-friction components. Adherence to EN1176, ASTM, and CE certifications ensures the structure meets international safety benchmarks, facilitating faster insurance approvals. From an ROI perspective, the powder-coated steel pylon system and HDPE components offer a 15-year service life with minimal maintenance, resulting in a lower per-child-per-year cost compared to timber-based alternatives that require annual resurfacing and structural re-treatment in arid climates.

Installation Guide

Given the custom large-scale dimensions and the cantilevered moon section, installation requires a precision-engineered foundation. Based on the structural weight of the galvanized steel pylons, a reinforced concrete pad (C25/30 grade) is mandatory, with footings extending below the frost line or at least 600mm deep for stability against lateral wind loads. Following EN1176-1:2017 requirements, a safety zone extending 1.75m beyond the maximum footprint in all directions is required, utilizing EPDM pour-in-place surfacing to accommodate the critical fall height of the elevated walkways. Due to the height of the crescent moon exceeding 4m, a 10-ton mobile crane is necessary for the assembly of the upper perforated panels and the GRP cloud housing. Estimated installation time for a certified four-person crew is 10 to 14 working days, including the curing time for the multi-axial pylon anchors and the final torque-testing of the modular HDPE slide segments.

10-Year Cost of Ownership

The 10-year Total Cost of Ownership (TCO) for this Moon & Cloud structure is optimized through its high-durability material selection. The initial capital expenditure covers the FOB shipping of heavy-gauge steel and GRP components. Annual maintenance is estimated at 1.5% of the purchase price, primarily involving bolt tightening and surface cleaning of the CNC-perforated panels to prevent sand accumulation. Unlike timber structures that require expensive annual staining, the powder-coated galvanized steel and UV-stabilized HDPE resist degradation for over a decade. Factoring in installation labor and a 10-year replacement probability of less than 5% for structural elements, the amortized cost framework suggests a highly competitive annual expenditure. The primary wear-and-tear components are limited to the HDPE slide entry points, which are modular and easily replaceable without disrupting the main pylon system, ensuring the park remains operational with minimal downtime.
