HonPlay
Back to Products
Price $300 – $500 USD / FOB
Get Quote

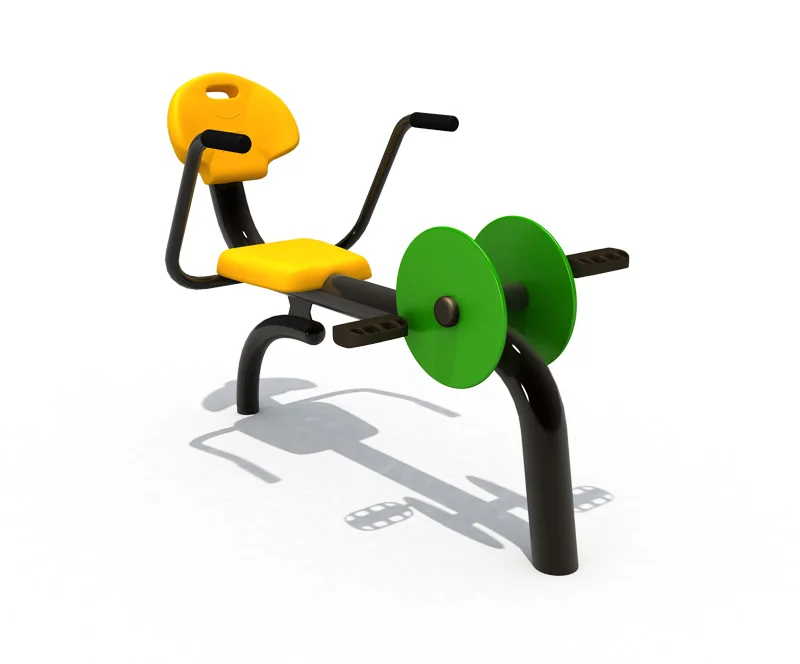

Outdoor Seated Rowing Machine in Galvanized Steel & UV-stabilized LLDPE with yellow seat and green plates for Dubai community parks

Outdoor Seated Rowing Machine - Durable Fitness Equipment for Dubai Community Parks

Fitness equipment

Compliance: EN1176

Product Snapshot

Product Outdoor Seated Rowing Machine - Durable Fitness Equipment for Dubai Community Parks
Category Fitness equipment
Material Galvanized Steel & UV-stabilized LLDPE
Dimensions (LWH) 1.2m x 0.75m x 1.1m
Capacity 1 simultaneous users
Age Group 12 Years and Older
Certification EN1176, CE, ISO9001
Climate Suitability Desert & Arid Climate Zones; Mediterranean & Warm Temperate
Lead Time 30–45 days FOB Ningbo/Shanghai
Manufacturer HonPlay, Wenzhou, China (est. 1997)

Key Details

Brand: HonPlay
SKU: 297
MPN: 297
Price: $300 – $500
Availability: In Stock

Activities

Balance ⓘ
Jump ⓘ
Pull ⓘ
Push ⓘ
Rotate ⓘ
Rules play ⓘ
Sensory ⓘ
Socialize ⓘ
Wonder ⓘ

Product Description

The HonPlay Outdoor Seated Rowing Machine offers a robust and effective fitness solution specifically designed for community parks and public outdoor gyms. Engineered from durable galvanized steel with heat-reflective powder coating, this rowing machine is built to withstand harsh climates, including the desert and arid conditions prevalent in Dubai. It provides a low-impact, full-body workout, making fitness accessible and engaging for users aged 12 and older. Compliant with EN1176 certification, this premium outdoor fitness equipment ensures safety, longevity, and promotes active, healthy communities.

Heat-reflective powder coating on galvanized steel prevents thermal buildup exceeding safe touch thresholds.

Site Suitability

Expert recommendations for ideal installation environments based on product attributes and material specifications.

Public Outdoor Gyms

The high-contrast yellow seating and green accents ensure high visibility in public parks, while the heavy-duty central pylon provides the stability required for unsupervised communal use.

Coastal & High-Humidity Zones

Utilizing corrosion-resistant coatings on the thick-walled steel tubing and non-porous plastic components, this unit is built to endure salt-heavy air and frequent precipitation without structural compromise.

Play Value

This playground equipment supports child development across physical, social, and cognitive dimensions—aligned with modern educational and landscape design principles.

Targeted musculoskeletal development foc

Targeted musculoskeletal development focusing on the latissimus dorsi and biceps through functional pulling movements.

Proprioceptive feedback enhancement as u

Proprioceptive feedback enhancement as users manage their own body weight and resistance against the fixed frame.

Social fitness engagement by allowing us

Social fitness engagement by allowing users to exercise in proximity to others, fostering community-based health goals.

Engineering Highlights

Key engineering features that ensure safety, durability, and compliance with international standards.

Reinforced industrial-grade steel chassi

Reinforced industrial-grade steel chassis with a high-gloss powder coating to resist UV degradation and mechanical wear.

Integrated footrest platforms with textu

Integrated footrest platforms with textured anti-slip surfacing for secure user positioning during high-intensity use.

Oversized green HDPE circular guards tha

Oversized green HDPE circular guards that shield internal mechanical components while providing a distinct visual aesthetic.

Safety & Installation

Regulatory Compliance

Fully compliant with EN1176, CE, ISO9001 standards. Critical fall height of 1.1m validated against EN1176 free-fall requirements. Every weld and joint tested for finger-entrapment, head-entrapment, and crush-point prevention. Age-group classification (12 Years and Older) verified for developmental appropriateness and dimensional scaling.

Safety Zone & Surfacing

Critical Fall Height: 1.1 m. Requires a minimum safety zone of 4.7m × 4.3m. Recommended surfacing: EPDM Rubber Wet-pour or high-density artificial turf with shock pads.

Installation & Engineering Support

This 1.2m × 0.75m structure (0.9 m² footprint) ships in 2 modular pre-assembled sections to minimize on-site labor. All sections are forklift-manageable — no crane required. Estimated assembly time: 4 person-hours with standard tools. Installation manual includes torque specifications for all bolted connections and weld-inspection checkpoints.

  • • Primary Material: Galvanized Steel & UV-stabilized LLDPE

How This Compares

Performance benchmarks against 75 products in the Fitness equipment category.

Feature This Product Category Avg Δ
Capacity 1 children 2 children -50%
High-Engagement Activities 1 of 9 2.2 of 9 -1.2
Primary Material Galvanized Steel & UV-stabilized LLDPE Varies Standard
Certifications EN1176, CE, ISO9001 EN1176 3 standards

Frequently Asked Questions

How does the Outdoor Seated Rowing Machine withstand the extreme UV exposure and high temperatures typical of Dubai community parks?
This fitness equipment is specifically engineered for harsh climates like Dubai. The primary chassis is constructed from reinforced industrial-grade galvanized steel, which is then treated with a high-gloss powder coating designed to resist UV degradation and mechanical wear. Furthermore, the yellow seating and backrest, along with the oversized green circular guards, are manufactured from UV-stabilized LLDPE and HDPE. These materials ensure that the 1.2m x 0.75m x 1.1m structure maintains its structural integrity and color vibrancy without becoming brittle or overheating, even when installed in unshaded desert environments where surface temperatures can fluctuate significantly.
What are the specific safety zone requirements and installation footprints for this single-user rowing station?
While the physical dimensions of the machine are 1.2m x 0.75m x 1.1m, municipal safety standards like EN1176 require a dedicated impact area surrounding the unit. For this seated rowing machine, we recommend a minimum safety clearance zone of approximately 4.2m x 3.75m to allow for the full range of motion of the rowing arms and to ensure safe ingress and egress for users aged 12 years and older. The reinforced steel chassis requires secure anchoring into a concrete sub-base, typically 300mm below the finished surface, to manage the mechanical leverage generated during high-intensity use of the integrated anti-slip footrest platforms.
Does this equipment meet international compliance standards for public resort and municipal park installations?
Yes, the Outdoor Seated Rowing Machine is fully certified to meet the rigorous safety and quality demands of commercial and public sector buyers. It carries EN1176 certification, which is the European standard for playground and fitness equipment, alongside CE and ISO9001 marks. These certifications validate the engineering of the reinforced industrial-grade steel chassis and the safety of the mechanical pivot points. The inclusion of oversized green HDPE circular guards is a specific safety feature designed to shield internal mechanical components from user interference, ensuring the unit remains compliant with public safety regulations throughout its operational lifespan in high-traffic resort areas.
Can the color scheme of the LLDPE components and the steel chassis be customized for specific branding or landscape themes?
We offer customization options for high-volume municipal and resort projects. While the standard model features a high-visibility yellow seat and green HDPE circular guards, the UV-stabilized LLDPE components can be manufactured in various RAL colors to match specific landscape architecture requirements. Additionally, the high-gloss powder coating on the galvanized steel chassis can be adjusted from the standard black to alternative professional finishes. This flexibility allows developers to integrate the 1.2m long rowing station into diverse aesthetic environments while maintaining the core durability of the industrial-grade steel and the functional safety of the textured anti-slip footrest platforms.
